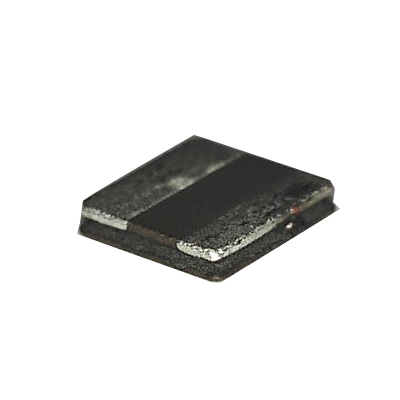

AHP4008RA

Advanced Search
Choose Photo Series Part Number Dimension (mm) L(mm) W(mm) T(mm) Inductance Range(uH) DCR (Ω) I sat (A) I rms (A) Operating Temperature
AHP4008RA-R47M AHP4008RA-R47M 4008 4.00±0.20 4.00±0.20 0.70±0.10 0.47±20% 0.060 Typ / 0.072 Max. 6 3.5 -40~+125℃ (Including self - temperature rise)
AHP4008RA-R68M AHP4008RA-R68M 4008 4.00±0.20 4.00±0.20 0.70±0.10 0.68±20% 0.080 Typ / 0.096 Max. 5 3.2 -40~+125℃ (Including self - temperature rise)
AHP4008RA-1R0M AHP4008RA-1R0M 4008 4.00±0.20 4.00±0.20 0.70±0.10 1.00±20% 0.100 Typ / 0.120 Max. 4 3 -40~+125℃ (Including self - temperature rise)
AHP4008RA-1R5M AHP4008RA-1R5M 4008 4.00±0.20 4.00±0.20 0.70±0.10 1.50±20% 0.125 Typ / 0.150 Max. 3.5 2.6 -40~+125℃ (Including self - temperature rise)
AHP4008RA-2R2M AHP4008RA-2R2M 4008 4.00±0.20 4.00±0.20 0.70±0.10 2.20±20% 0.150 Typ / 0.180 Max. 3 2.3 -40~+125℃ (Including self - temperature rise)
AHP4008RA-3R3M AHP4008RA-3R3M 4008 4.00±0.20 4.00±0.20 0.70±0.10 3.30±20% 0.220 Typ / 0.260 Max. 2.7 2 -40~+125℃ (Including self - temperature rise)
AHP4008RA-4R7M AHP4008RA-4R7M 4008 4.00±0.20 4.00±0.20 0.70±0.10 4.70±20% 0.300 Typ / 0.360 Max. 2.5 1.7 -40~+125℃ (Including self - temperature rise)
AHP4008RA-6R8M AHP4008RA-6R8M 4008 4.00±0.20 4.00±0.20 0.70±0.10 6.80±20% 0.500 Typ / 0.600 Max. 2.3 1.4 -40~+125℃ (Including self - temperature rise)
AHP4008RA-100M AHP4008RA-100M 4008 4.00±0.20 4.00±0.20 0.70±0.10 10.0±20% 0.700 Typ / 0.840 Max. 2.1 1.2 -40~+125℃ (Including self - temperature rise)
